Compression strut systems

In modern architecture, it is important to bring the delicate design language of heavy-duty and safe tension and compression strut systems in line with the sophisticated and aesthetic lightweight construction method.

Download data sheet compression strut systems 560Download data sheet compression strut systems 460 stainless steelDownload brochure
  • Application
  • System components
  • Benefits for our Customers
  • Examples of Applications

Application

The m•connect compression strut systems made from unalloyed structural steel or stainless steel are approved by the building authority and can absorb tensile forces, yet they are specially designed to absorb and distribute compressive forces. They are ideal for use as stabilizing elements and supports, suspension components for simultaneous pressure loads and as pressure bars in framework structures.

Combining compression strut and tension rod systems offer extended design possibilities.

System components

Compression strut systems are composed of fork heads including pin and circlips and the main truss elements (supplied as solid round bar for shorter lengths and hollow tube for longer lengths). Compression strut systems are manufactured as standard with length adjustability.

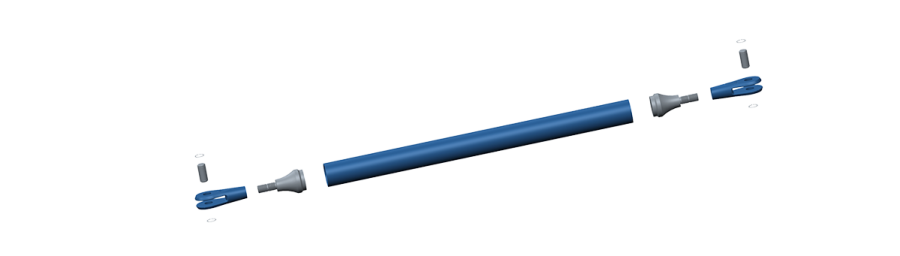

  • 1
    Circlip
  • 2
    Pin
  • 3
    Compression strut
  • 4
    Cover nut
  • 5
    Fork head
  • 1Circlip
  • 2Pin
  • 3Compression strut
  • 4Cover nut
  • 5Fork head

Benefits for our Customers

  • Compression strut systems with European Technical Approval (ETA-06/0236)
  • Wide range of applications from M6 to M120
  • Left-/right-hand threads for an easy length adjustment and to compensate structural tolerances
  • All systems are delivered pre-assembled and ready for installation. Complex, time-consuming assembly on the construction site is avoided
  • Compression strut systems are available in unalloyed structural steel or stainless steel
  • In-house calculation and dimensioning of the individual system components
  • Part strength analyses created for the customer
  • Optimal corrosion protection for systems made of unalloyed structural steel by hot-dip galvanized external threads
  • Different surface treatments available
